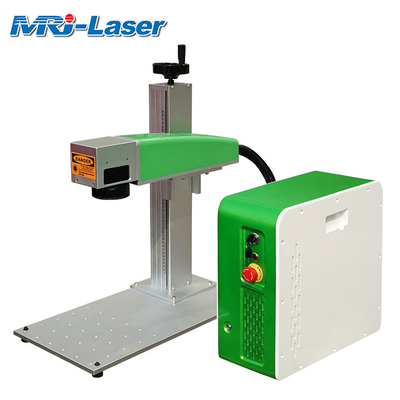

High Efficiency Air Cooled Portable Mini Fiber Laser Marking, Engraving, Etching Machine 20W 30W for Metal, PCB

1 Set
MOQ
$3,200.00(1 - 3 Sets) $3,000.00(>=4 Sets)
가격
High Efficiency Air Cooled Portable Mini Fiber Laser Marking, Engraving, Etching Machine 20W 30W for Metal, PCB
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Application: Laser Marking
Working Accuracy: ±0.005mm
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, JPEG/PNG/TIF
Laser Type: Fiber Laser
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD Software /JZC
Laser Source Brand: Raycus
Weight (KG): 40 KG
Key Selling Points: High Safety Level
Warranty: 3 years, 2 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marking Area: 110mm*110mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Laser Engine
Mode of Operation: Pulsed
Configuration: stand-alone
Feature: Air-cooled
After-sales Service Provided: Overseas service center available
Laser Power: 20W/30W
Power supply: 110V/220V 50Hz-60Hz
Galvo Scanning Head: Sino-Glavo
Laser Source: China Raycus
Applicable Material: Metal/ABS/PC
Field Lens: F-Theta
Marking Speed: 14000mm/s
Marking Depth: 1.5mm
기본 정보
결제 및 배송 조건
Packaging Details: Wooden case
제품 설명

High Efficiency Portable Mini Fiber Laser Marking , Engraving ,Etching Machine 20W 30W for Metal,PCB

High Efficiency Portable Mini Fiber Laser Marking , Engraving ,Etching Machine Characteristic:

1.Best Marking Effect: the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip. 2.Deep Marking: Fiber laser can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.

So it’s suitable for the industries which has high requirement to the depth and accuracy. 3.Higher Accuracy: fiber laser can reach up to 0.001mm precision, while diode only 0.01mm. 4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 10 thousand hours, so the machine can be used for 8-10 years.As for diode laser module is 2 thousand to 3 thousand hours and only can be used for 1-3 years.

5.No consumables: Fiber laser machine can be used for 8-10 years with any consumables. 6.No need to adjust the laser path: fiber laser beam comes out from the fiber device directly, so no need to adjust the laser optical path. While Diode laser need to adjust the laser optical path regularly. 7.Free of Maintenance: Fiber laser machine can be used free of maintenance. Diode laser need to change the diode module and recycle water regularly. 8.Use Integrated Air Cooling: Fiber laser uses integrated air cooling, and the cooling effect is excellent than the water cooling used in Diode and YAG laser. Also, air cooling no need to maintain, save many cost and energy. 9.Low Power Consumption: low cost, only 0.5kw/hour. While Diode is 3kw/hour, and YAG is 5 kw/hour. Fiber laser is more economized and environmental. 10.Small and compact: the volume of fiber laser marking machine is small, only 0.5 M2. It can be put in desk and easy to install.

Specification

Brand Name: MRJ-Laser

Laser Type: Fiber Laser

Laser Power: 20W

Beam Quality: M2≤1.6

Marking Field: 70*70mm to 300*300mm

Marking Speed: ≤14000mm/s

Min. Character: 0.2mm

Min. Line Width: 30um

Repetition Precision: ±0.005mm

Laser Head: Sino-Galvo scanning head

System&Control Software:Origin JCZ &EZCAD

Support Format:PLT, BMP, DXF, JPG, TIF, AI etc

Red Light Indicator: YES

Cooling system: Air cooling

Voltage: 220-240V/50Hz or 110-120V/50,60Hz

Optional parts Rotary/F-theta Lens/Computer/Food switch

Weight &CBM: 80kgs&0.45cbm

Difference of 20w 30w 50w
20w fiber laser marking machine The most hot selling system by lowest price advantage. Especially on plastic and hard metals, it occurs perfect results. automotive, packing, kitchenware equipment, hand tools sectors are main ways preferred

30w fiber laser marking machine

Suitable for job shops and people who needs more power. One upper level then marking towards cutting. Especially for cutting, this is the first machine fits your requirement to cut.
50w fiber laser marking machine Do deep engraving, micro cutting, marking and 3D engraving perfect. Mostly preferred by jewelry sector, 50 creates %40 more effective results according to its competitors. One of the fastest model in market.

Comparison:

Optional Parts:

Application
Application Industry:
Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment, etc.
Instrument: Panel signs nameplates, precision equipment, etc.
Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc. Mechanical Parts: Bearings, gears, standard parts, motors, etc.
Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry: Rings Jewelry, gold, silver, etc.Food package: Plastic packages, etc.
Marking Material:
Metals:Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc,rare metal and alloy steel, gold, silver, titanium, etc.Non-metals: Plastics, rubber, resin, carton box, etc.
Main Parts:
Fiber Laser Source:IPG, SPI, Raycus, Max, JPT (optional)
Scan Head:SINO-GALVO
Marking Software:EZCAD
Others:F-theta Lens; Computer, Rotary, Goggles
Superiority:
R & D:Professional engineering design and the smallest size;
Warranty and service: 100,000 hours life time with 2 years warranty and oversea after-sales.
Free training.
Certificates: Customized products with CE, EN60825 and test certificates

Company Information

Chengdu MRJ-Laser Technology Co.,Ltd is a professional high-tech enterprise specialized in laser marking, welding, visual inspection and related application control system’s development, production and sales, all products have passed EU CE certificates. Quality control strictly enforce the ISO9001 quality management system.

Core Advantages of MRJ-Laser:
1. Focus on customized & personalized & intelligent laser equipment;
2. The world's smallest 30W desktop laser marking machine;
3. With 10 invention patents and a number of intellectual property certificates;
4. Meet the development needs of different optical, mechanical, hardware and software systems.

Packaging & Shipping

Why choose MRJ-Laser

Versatile:

MRJ laser engraving machines can be customized for your specific industrial or educational applications and our machines can easily be adjusted for a wide range of materials. One-off prototypes, small or larger production runs are all easily catered for with a laser machine.

Precise:

MRJ’s laser engraving machines can engrave a wide range of materials to a high degree of accuracy, ensuring top results every time - even intricate or complex detail can be produced effectively.

Fast:

Because laser engraving is faster than traditional techniques, you can achieve greater output and increased productivity, giving you a better return on your investment and ultimately leading to more profitability!

Safe and Clean:

Laser engraving is a contact-free engraving process - materials do not need to be clamped down or adjusted and the laser machines never expose the operator to moving parts. All MRJ machines are fully tested, CE approved and comply with industry safety standards. This is a clean and efficient process, especially when used in conjunction with a MRJ filtration/ventilation system.

Ease of use:

Whether you are new to laser engraving or an expert, MRJ laser engraving machines are easy to operate. Once the design software file has been imported and the laser settings adjusted, it is as simple as operating a microwave, laser printer or CD player!

Value:

MRJ laser engraving machines represent excellent value for money. The compact machine footprint compared to the working bed size makes MRJ laser machines an extremely attractive option.

Our Services

1. Free traning and free technical support

2. 3 years warranty,10 years lifespan, and lifetime maintenance

3. Provide parts with agency prices

4. Free parts to replace within 36 months

5. Free sample test

6. Customized products,ODM&OEM

FAQ

Q1: How can I get suitable machine?

Pls inform us the following things, then we could recommend you the suitable products:

  • Marking material
  • Marking area and marking depth(if you have such requirements)
  • Marking content,then we could mark a sample FYI.

Q2: This is the first time I use this kind of machine, is it easy to operate?

  • Firstly,it is quite easy to operate the machine.
  • Secondly, user manual and guide video in English will be offered, it can teach you how to operate the machine.
  • Thirdly,we can help you by "Teamviewer" online help software for remote control to solve your problem.
  • Fourthly, we can communicate by phone, email or other contact ways.

Q3: If the machine has problem in my place,what should I do?

  • We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4: How long is the delivery time?

  • For standard machines, it would be 7-10 days;
  • For non-standard machines and customized machines, it would be 15 to 30 days.

Q5: How's the payment?

  • Telegraphic Transfer (T/T)/Ali Trade Assurance Payment

Q6: Do You Arrange Shipment For The Machines?

  • Yes, we will arrange shipment for you.By sea,by air or express.
  • Of course, appointed forwarder is welcome
